    Adjustable Hydraulic Gantry Welding Machine Anti Deformation Frame

    Ask Lasest Price
    Brand Name : KAWE
    Model Number : KBWJ-30
    Certification : ISO9001
    Price : USD 30,000-USD250,000
    Supply Ability : 1set/40days
    Delivery Time : 5-40days
    • Product Details
    • Company Profile

    Adjustable Hydraulic Gantry Welding Machine Anti Deformation Frame

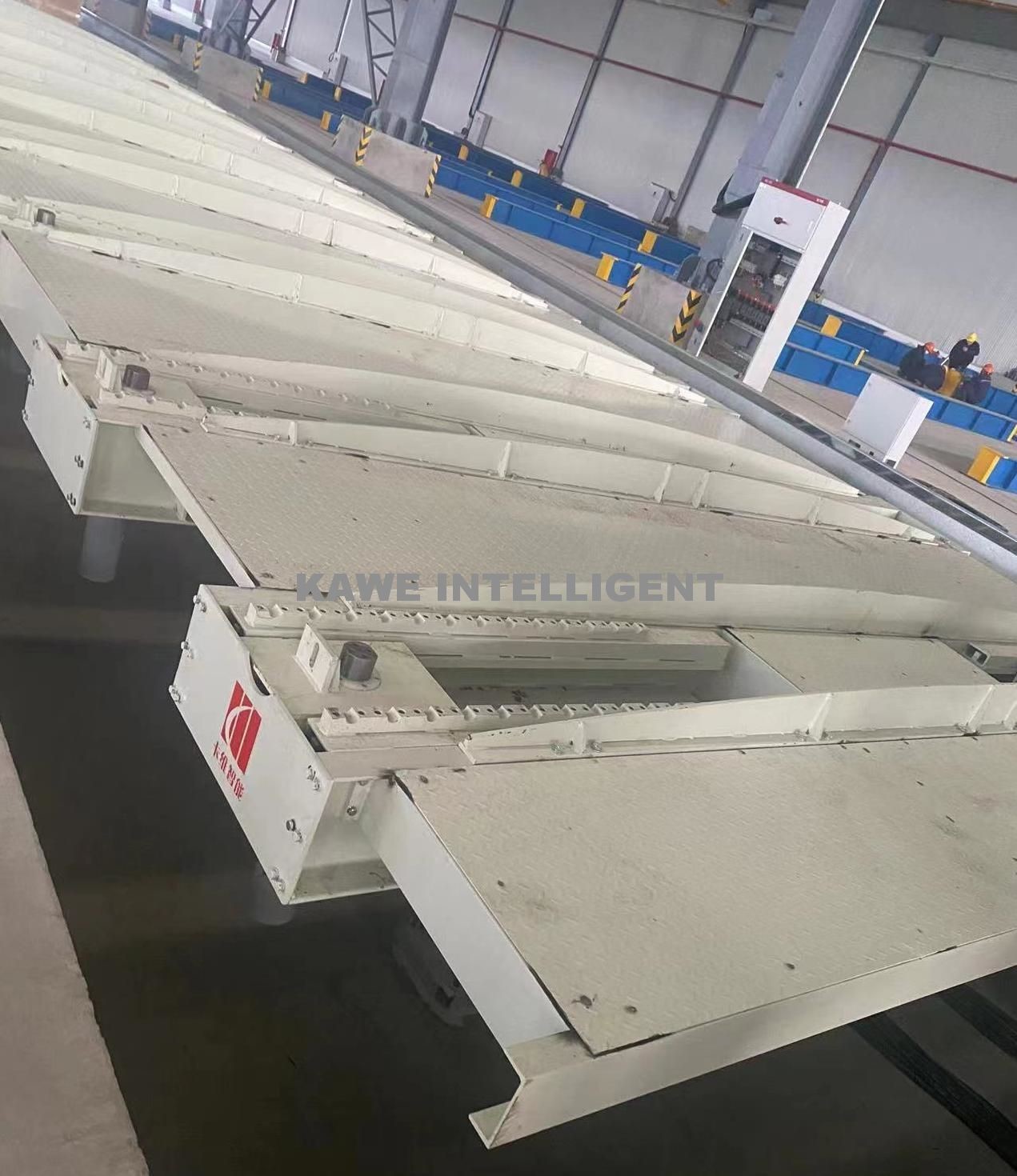

    Adjustable hydraulic anti-deformation frame

    The welding jigs are mainly made of 350x250 hot rolled H-beam steel, and the reverse side is equipped with rotating oil cylinder,

    Cylinder alignment drive chain, reverse deformation compression cylinder and hydraulic pipeline, etc.

    main technical parameters

    Load Capacity30T
    Flip angle0~±30°
    Anti-deformation compacting centering deviceThere are 10 sets at each side, the spacing is 1600mm, the pressure up and down 120mm, the pressure force is 5 tons, the center device about 1100mm/900mm moving distance, the center force is 3 tons
    Plate element width range2300mm~4500mm/1800mm~3600mm

    Adjustable Hydraulic Gantry Welding Machine Anti Deformation Frame
