    Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

    Ask Lasest Price
    Brand Name : KAWE
    Model Number : KDL-500
    Certification : ISO9001
    Price : USD30,000-50,000
    Supply Ability : 1set/30days
    Delivery Time : 5-30days
    • Product Details
    • Company Profile

    Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

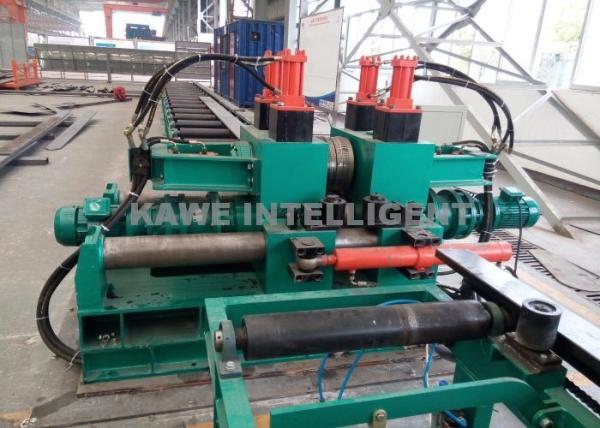

    Hydraulic chamfering machine


    Technical process:

    The machine adopts the principle of the rolling, fast and efficient rolling material edge, make it become rounded angle, can replace the traditional manual deburring, chamfering process, rounded process, uniform rounded shape, appearance beautiful, the production efficiency is high, the worker labor intensity is low, through the plate edge rolling, greatly reduces the plate edge stress concentration, the machine is in sheet metal welding, Anticorrosion and prevent plate paint from falling off, its role is especially outstanding, the machine has the same high efficiency for mass production and small batch, is the ideal supporting equipment for shipbuilding, steel structure and other industries.

    Technical parameters:

    ItemParameters
    plate width150-500mm
    plate thickness10-50mm
    workpiece length4000-12000mm
    materialQ235A/Q345B
    Hydraulic rounded cornersR2-R3
    Hydraulic speed10m/mim
    Auxiliary conveying speed10m/min
    rated pressure of hydraulic system10Mpa
    machine power9KW
    overall dimensions26500×1830×1345
